High Quality

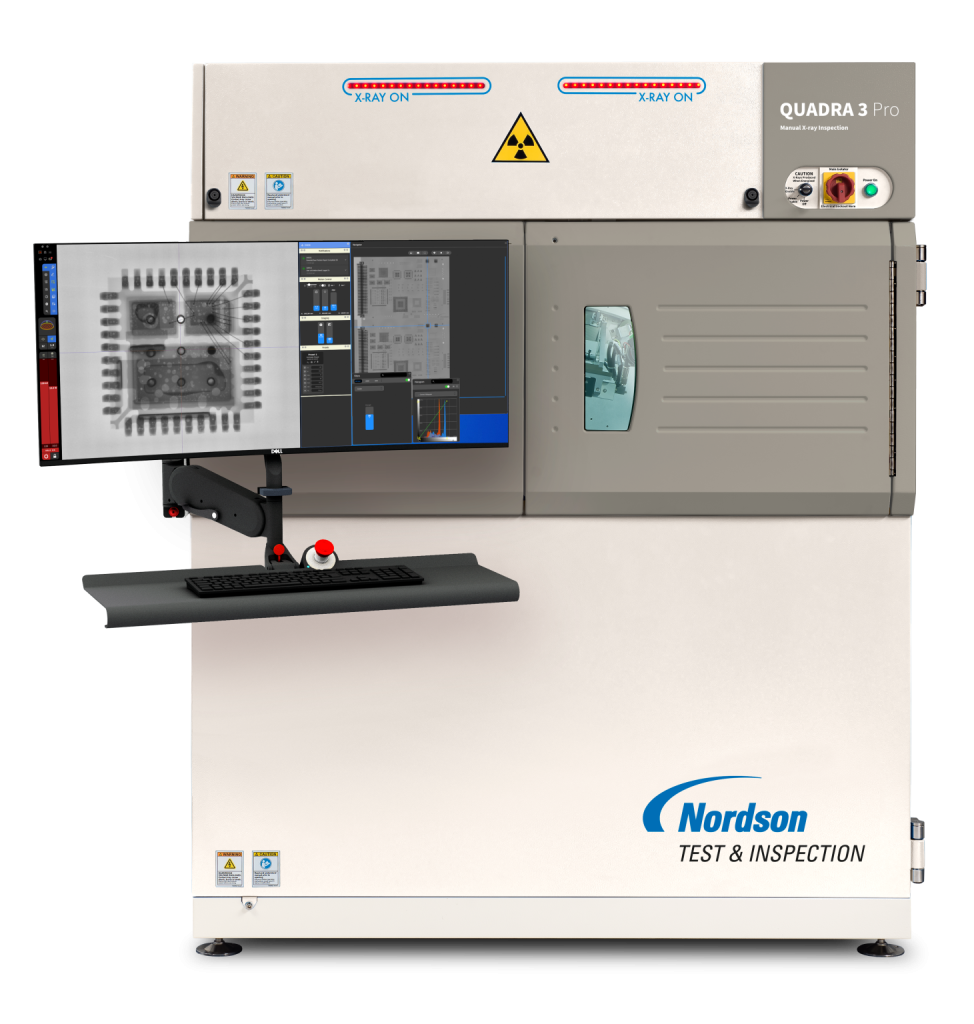

Quadra® 3 Pro is your partner for high quality X-ray inspection at high magnification for quality control of production applications. Detect a wide range of manufacturing defects including BGA, QFN and IGBT attachment, PTH filling, interfacial voiding, component cracking and counterfeit devices.
Pioneering Software
Get working quickly with Revalution™ control software which features simple intuitive menus and controls. Personalize and store individual operators screen layouts for smoother workflow. Customize filtering and image enhancements to suit your applications needs. Utilize the easy point & click controls to analyze defects fast and produce automated inspection routines.
Maintenance Free
- Minimize downtime. The QuadraNT X-ray tube requires no regular maintenance or filament changes.
- Lifetime repeatability as standard. Since the filament is never changed, inspection imagery is clear and repeatable, today, tomorrow and year after year.
- Oil free. QuadraNT uses an oil free ion pump to maintain vacuum which never requires an oil change.
Optimal Clarity
Designed in-house by a team of semiconductor experts Onyx™ delivers stateof- the-art performance. Using world-class pixel specifications for low dose sensitivity & high saturation dose. Onyx™ has higher frame rates and lower noise, giving you faster clearer images.
No Compromises
Easily ensure IPC compliance with automatic measurement and voiding analysis that gives clear pass/fail results. Quadra’s unique double angle geometry lets you look from every angle without a rotation table. You are not limited to rotating smaller samples only.
Inhouse Components

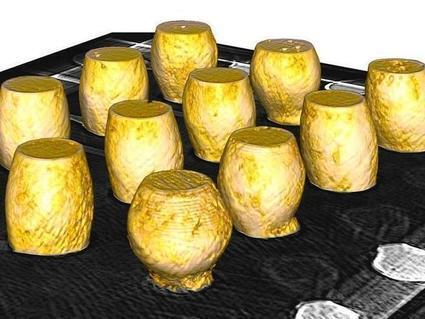

Head in pillow and open joints (see blue circles) effortlessly identified using X-Plane. See the clearest images of electronics samples. Quadra 3 is the only 0.95 µm system with an image chain completely designed and manufactured in house for electronics samples.
